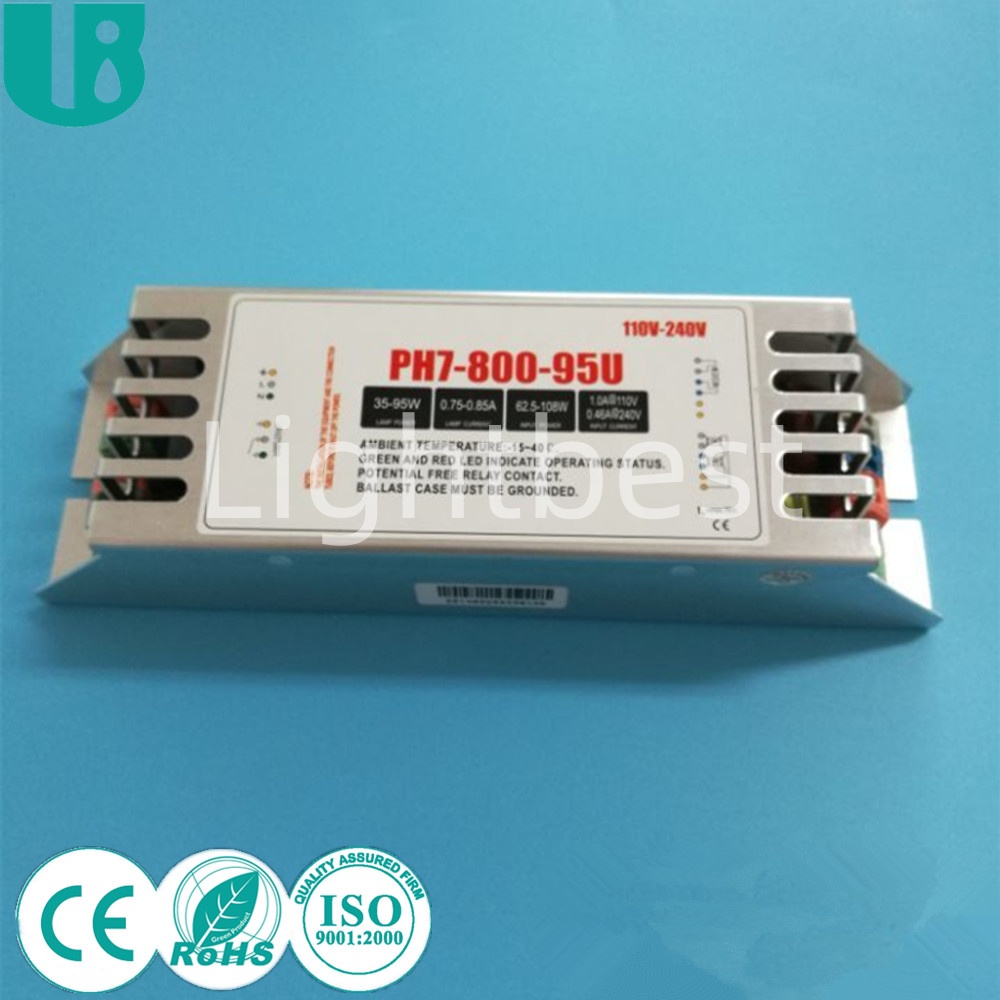

PH7-800-95U
1*Lamp Type:GPH846T5HO GPH893T5HO GHO36T5L TUV36T5HO TUV55WHO TUV75WHO
Wiring Diag：A
2*Lamp Type: GPH436T5HO TUVPL-L35WHO
Wiring Diag：B

Technical specifications
Mains Voltage：110-240VAC±10%
Mains Frequency:50/60Hz
Power Factor: >0.98
Efficiency: >90%
Operating Frequency: 40-60KHz
Dimensions: 185*56*38 mm

Lamp status indication via LED indication
Green LED：Lamp on
Red LED：Lamp fault

Lamp status forwarding
Potential free relay contacts for lamp on/lamp fault..

Installation requirement
Wire Gauge：0.5-1.5mm²
Max.cable length between ballasts and lamp：5m
Relay contacts：potential free，load：50…500mA at 24…230V AC；
50…500mA at 5…60V DC

Mounting restrictions
Disconnect Input Power Before Installing or Servicing.
Ballast Case Must Be Grounded.
Don’t short any two wires of the four outputs.

Features
Starting：Preheat
Add buzzer function
Buzzer function：The buzzer will sound when the lamp fault..
UV lamp can be connected to external LED.

    Two isolated 5V output，C drawing：

   This product is in stock, order cycle is 20 days, when ordering, please note this function



Applications：
Air purification
Industrial water treatment
Kitchen purification
